QuickPost – getting started with Citrix UPM Containers

As you’ve probably noticed from some of my output recently, Citrix User Profile Management (UPM) now supports container-based as well as file-based profile management. You can also mix and match the two types as well, something we will cover at a later date. For now, let’s just put together a quick guide to getting started and setting up a very simple PoC of Citrix UPM Containers.

Installation

Obviously, you need some target devices with the Citrix UPM agent installed. In order to take advantage of the newest container features, I’d recommend the latest version possible of the UPM agent. Now, you can use UPM on non-Citrix devices as long as you have the licensing, so you could simply install the agent, but as most people use it on Citrix endpoints you probably need to align the VDA version with the UPM version. You don’t technically have to do it, but mixing CR UPM versions and LTSR VDA versions often can trigger some “interesting” licensing conversations, so it makes sense to line them up.

On my devices, I have installed the 2305 version of UPM which is the latest full release available currently.

Share configuration

You also need to make sure you have an SMB file share available to hold your containers. You will need to set the following permissions on it:-

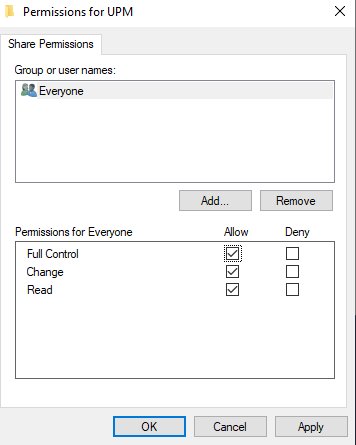

Share permissions

• Everyone – Full Control

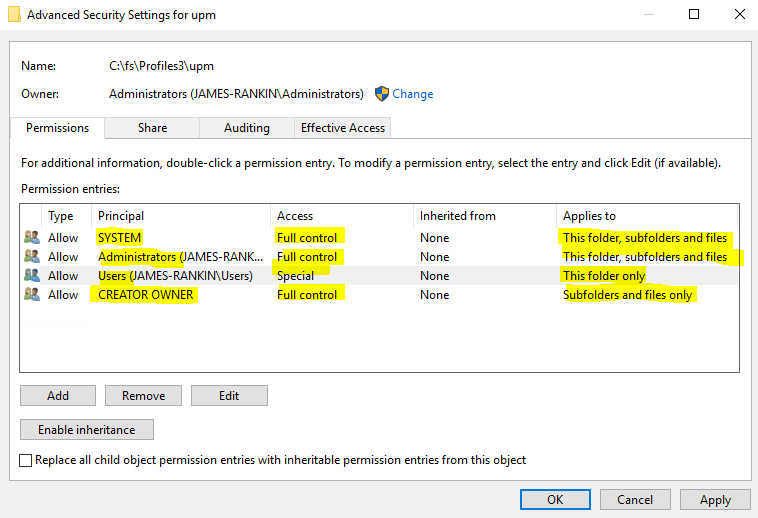

NTFS permissions

• System – Full Control – This folder, subfolders and files
• Administrators – Full Control – This folder, subfolders and files
• Creator Owner – Full Control – Subfolders and files only

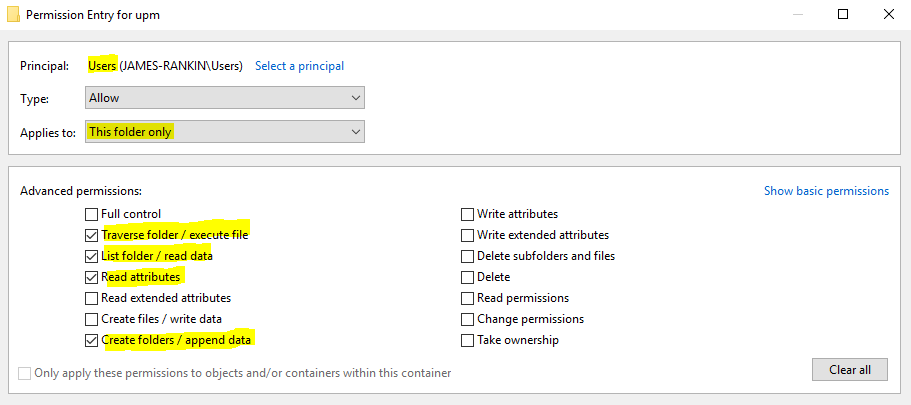

• Users – Special (see below) – This folder only

These permissions sets will allow users to create subfolders and have control of them, whilst not having access to any other user subfolders. Administrators will always be able to browse all user subfolders.

Policy files

You will also need to add the UPM ADMX/ADML files to your GP Central Store (if you are using Group Policy to apply the settings). If you are doing them via Citrix Studio Policies then you need not worry about this.

Policy configuration

The base set of policies you would need to get UPM Containers up and running in your environment are detailed below:-

(All are in Computer Config | Admin Templates | Citrix Components | Profile Management if using GP, if using Citrix Studio you can simply search for the policy name in the GUI)

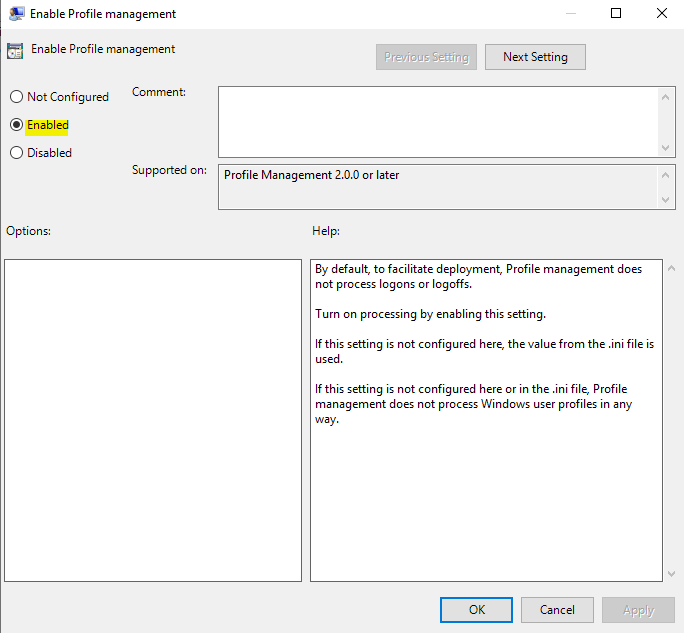

Enable profile management – Enabled

This simply means that the UPM service will attempt to manage profiles

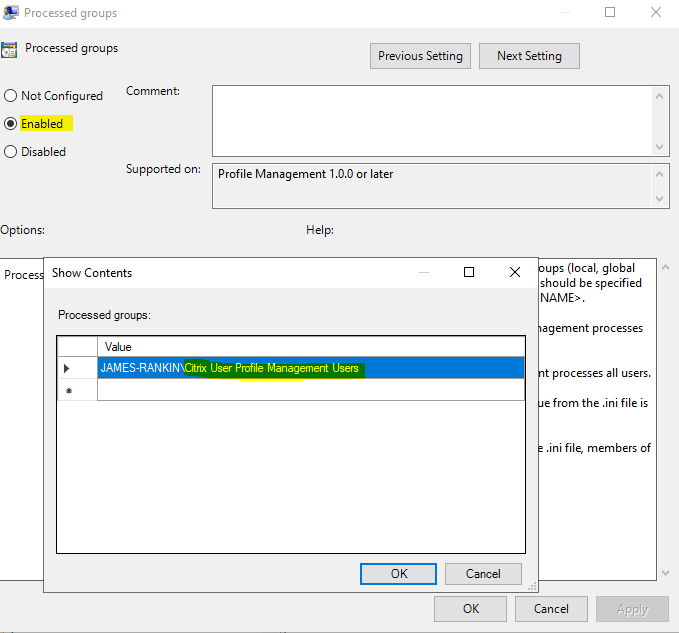

Processed groups – Enabled – select AD group

I find it useful to specify a particular group for processing as this avoids creating profiles for things such as service accounts and the like

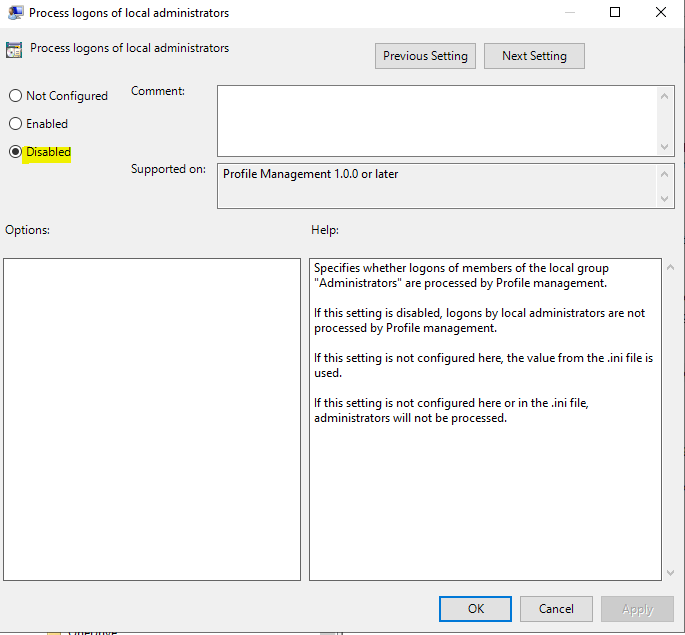

Process logons of local administrators – Disabled

In most cases local admins are not required to be managed by UPM as they are generally support accounts, but if your users have admin access (which they shouldn’t – they should have secondary accounts if they need admin access!) then you might want to leave this out

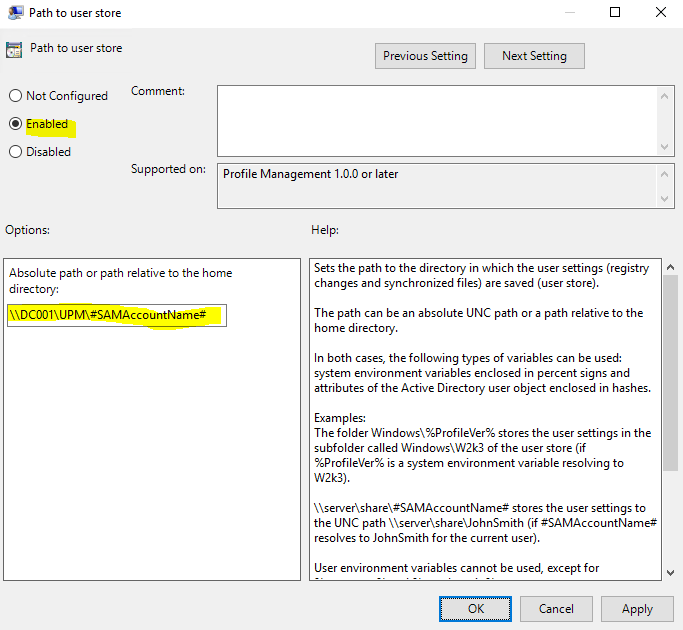

Path to user store – Enabled – enter path to file share

This tells UPM where to store the profile containers. Enter the UNC path for your SMB file share followed by #SAMAccountName# which will create a subfolder in the share path for each user

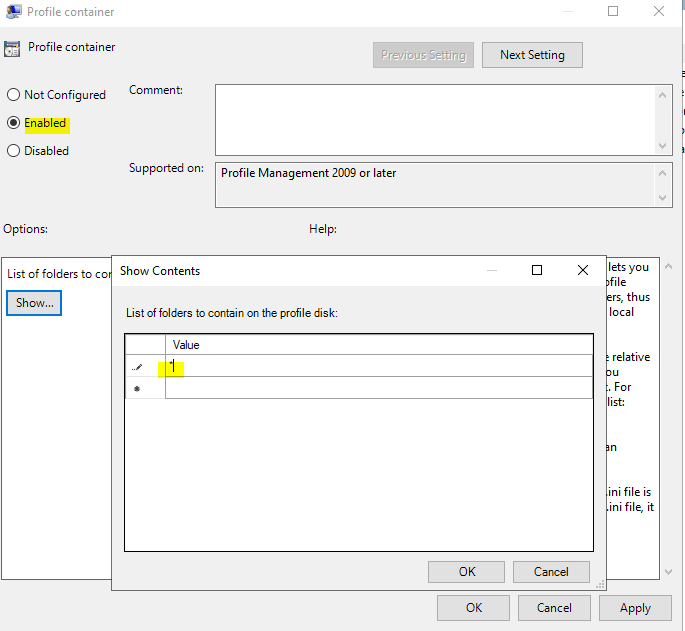

Profile Container – Enabled – *

Set this setting to Enabled and put a “*” for the optional folder contents as below. This will mean the entire profile is captured from the root

Finally, you can optionally use this last setting if you want faster logons. Bear in mind you must also set the GPO for “Allow asynchronous user Group Policy processing when logging on through Remote Desktop Services” if setting this policy on an RDSH-based (Windows Server) VDA

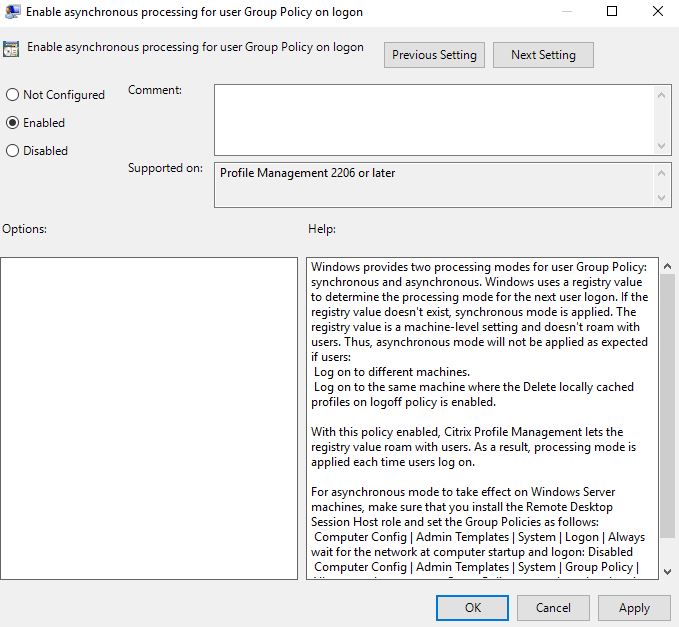

Enable asynchronous processing for user Group Policy on logon – Enabled

There is a downloadable file containing the GPO settings available here if you wish to use it.

Summary

This is all you need to configure to get UPM Containers up and running – it’s that simple.

• The installation of UPM agent and/or VDA onto your target devices
• An SMB file share with the correct permissions
• Citrix policies configured as above via GPO or Citrix Studio

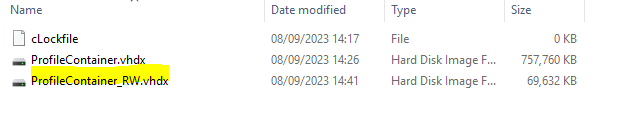

Once these are set, users logging in will get a profile container created in their folder and henceforth used to save all of their settings, just like FSLogix does. The only real difference to note between FSLogix and UPM is that UPM by default uses a diff disk and then merges it back into the base VHDX at logoff. This allows easier multi-session capability – however it means that in-session there may be a slight uptick in storage utilization when running at scale.

There are obviously lots of other settings within UPM you can use to configure and tune your deployment – replication being the most obvious one – and these are covered in earlier articles.

The UPM log is written to the standard area of c:\windows\system32\logfiles\UserProfileManager, so if you encounter issues, this is where to begin troubleshooting.

Stay tuned for some videos around this process, and also migration steps from FSLogix to UPM container – coming within the next week or so.
